Horizon EVO Products

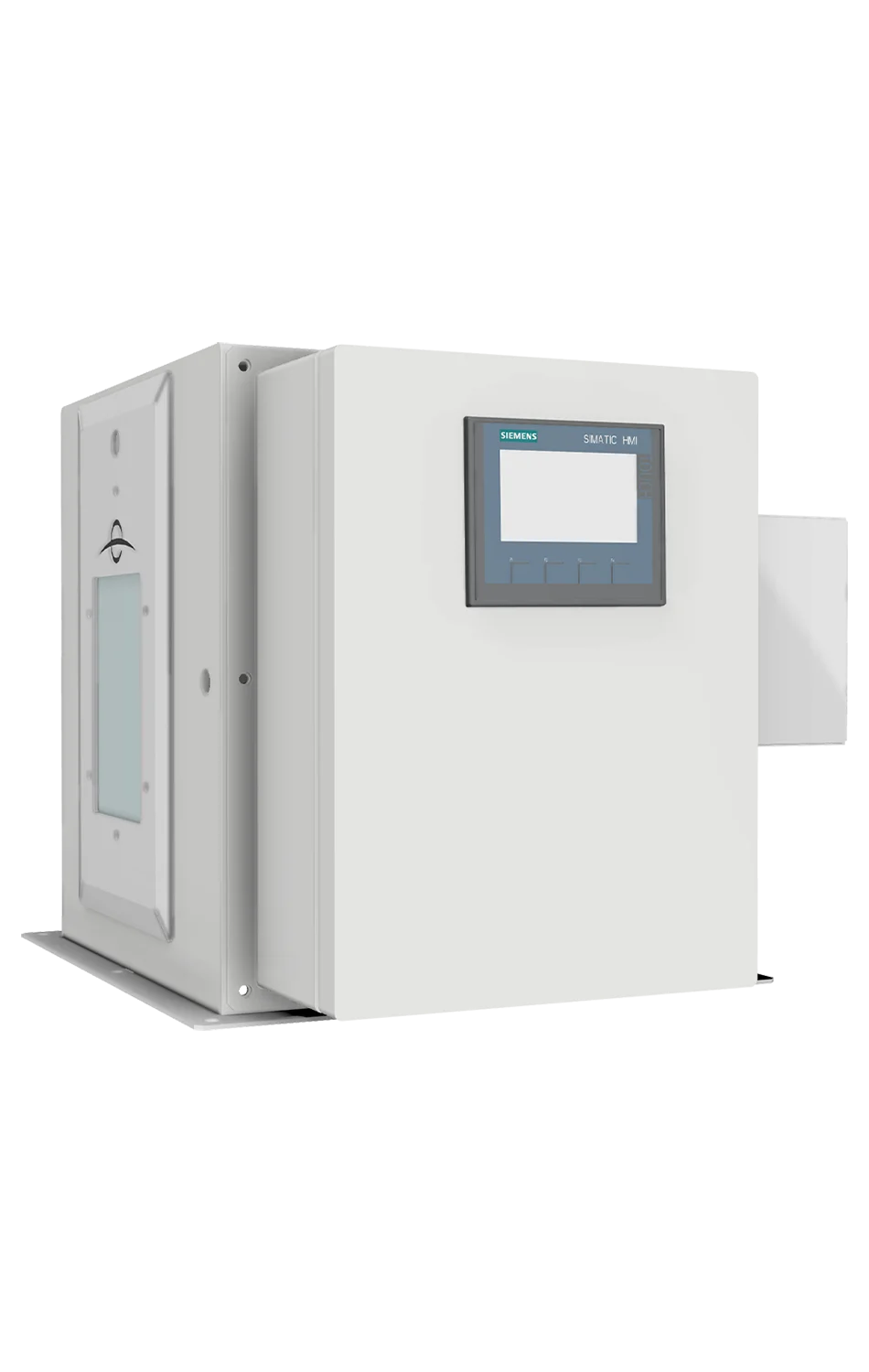

FlowOne

Ponderal Flow Balancer

The FlowOne (FO) is a versatile, robust ponderal flow measurer engineered for high- accuracy continuous dosing of granular products.

  • Control: Features guided calibration with dedicated sample weights and a manual override for operation during power failures or system faults.
  • Connectivity: Industry 4.0 ready, supporting ETHERNET, MODBUS TCP, and PROFINET for comprehensive local or remote interfacing via digital and analog controls.
  • Performance & Build: Handles capacities from 1 to 100 t/h; available in food- grade epoxy-coated carbon steel or AISI 304 stainless steel with an IP65-rated control panel.
  • Compliance: Certified for use in ATEX 22 environments.
Models Height (mm) Height (in) Capacity (metric) Capacity (imperial)
FO10 950 mm 37.4 in 30 ton/hr xx lbs/hr
FO30 1310 mm 51.6 in 50 ton/hr xx lbs/hr
FO40 1870 mm 73.6 in 51 ton/hr xx lbs/hr
FO50 2425 mm 95.5 in 100 ton/hr xxx lbs/hr

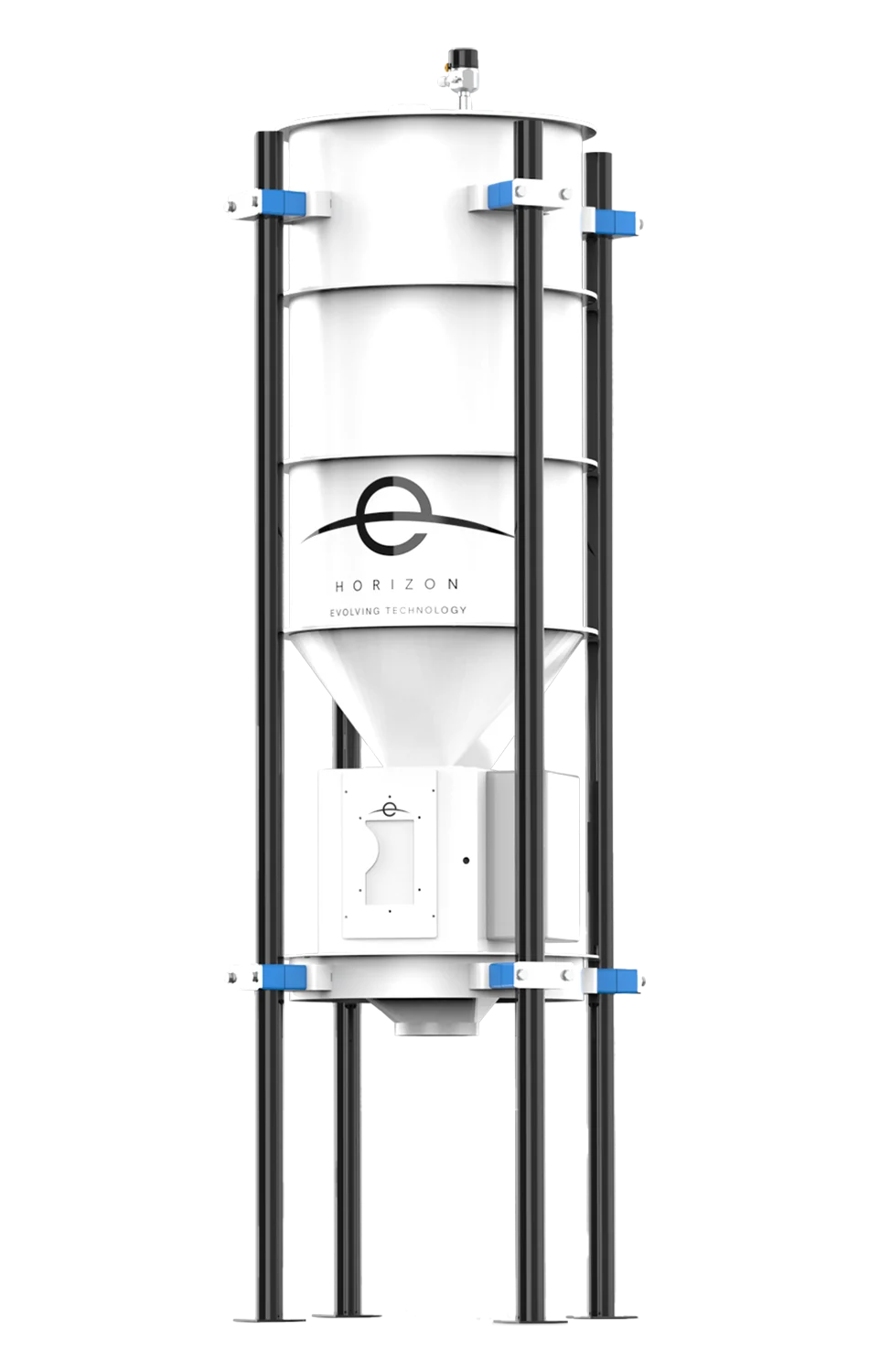

RateOne

Flow Measurer

The RateOne (RO) is a high-capacity in-line flow measurer designed for precision monitoring of granular products. By utilizing an integrated loading hopper with a continuous level sensor, the RO ensures a stabilized product flow, optimizing weighing plate impact and accuracy compared to standard inclined plate systems.

  • Control: Utilizes a proprietary software algorithm to synchronize hopper accumulation with outlet flow; features a simplified three-step guided calibration process using dedicated sample weights.
  • Connectivity: Industry 4.0 ready, supporting ETHERNET, MODBUS TCP, and PROFINET for seamless local or remote interfacing via digital and analog controls.
  • Performance & Build: Supports throughput from 1 to 100 t/h; available in food-grade epoxy-coated carbon steel or AISI 304 stainless steel with an IP65-rated control panel.
  • Compliance: Certified for use in ATEX 22 environments.
Models Height (mm) Height (in) Capacity (metric) Capacity (imperial)
RO30 1585 mm 62.4 in 30 ton/hr xx lbs/hr
RO50 2385 mm 93.9 in 50 ton/hr xx lbs/hr
RO100 2570 mm 101.2 in 100 ton/hr xxx lbs/hr

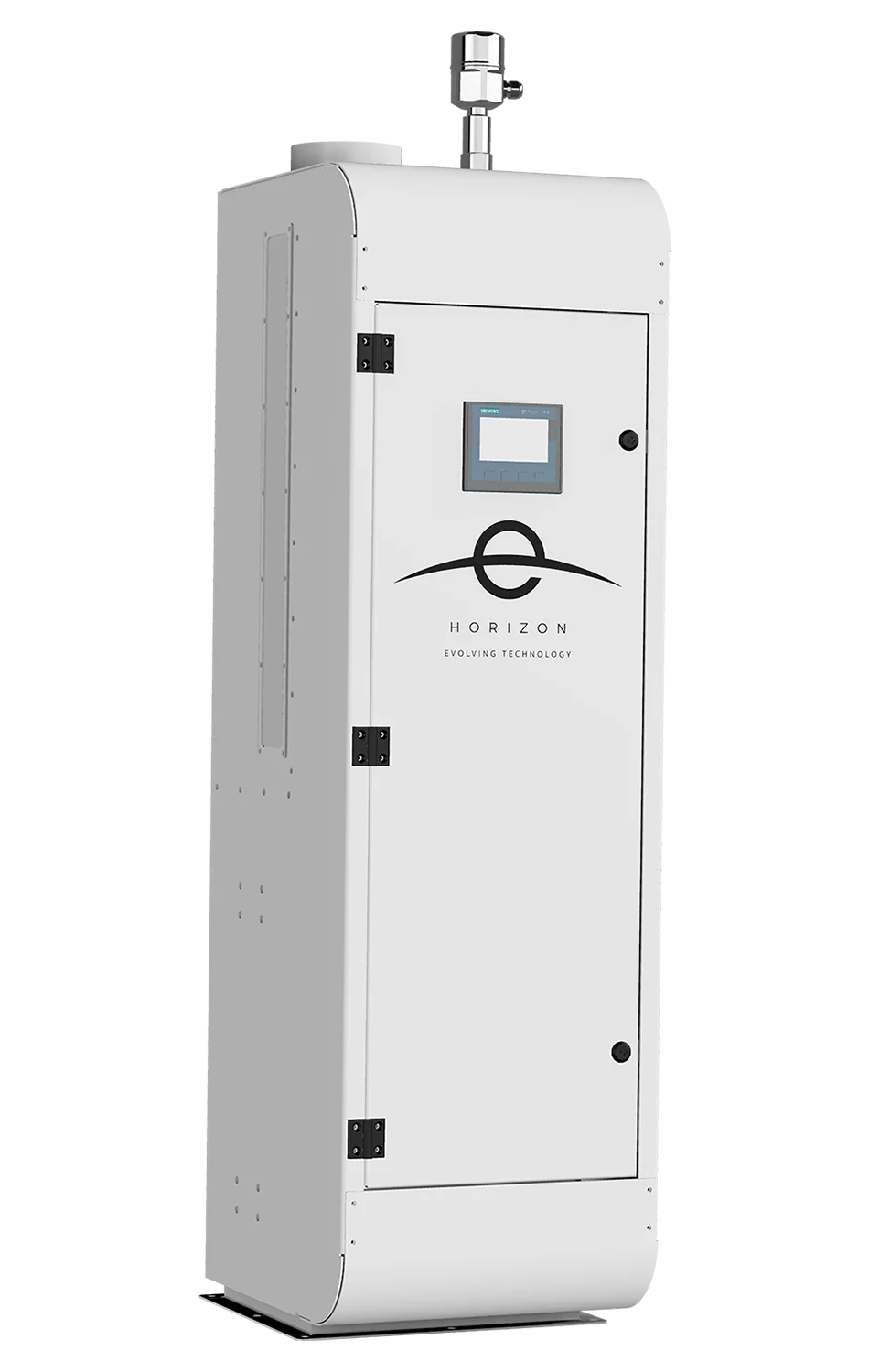

MoistureOne

Automatic Moisture Control

The MoistureOne (MO) is an advanced in-line system for the real-time analysis of moisture, temperature, and product flow. Engineered for the conditioning process, it integrates with a separate manifold for automated moisture adjustment, utilizing a high-precision microwave sensor backed by an extensive R&D database.

  • Control: Employs a proprietary filtering and management algorithm alongside an integrated loading hopper with a continuous level sensor to ensure wetting uniformity during flow fluctuations.
  • Connectivity: Industry 4.0 ready, supporting ETHERNET, MODBUS TCP, and PROFINET for comprehensive local and remote monitoring via digital and analog interfaces.
  • Performance & Build: Operates at flow rates from 1 to 30 t/h; available in AISI 304 stainless steel or food-grade epoxy-coated carbon steel with an IP65-rated control panel.
  • Compliance: Certified for use in ATEX 22 environments.
Models Height (mm) Height (in) Capacity (metric) Capacity (imperial)
MO10 1760 mm 69.3 in 10 ton/hr xx lbs/hr
MO30 1760 mm 69.3 in 30 ton/hr xx lbs/hr

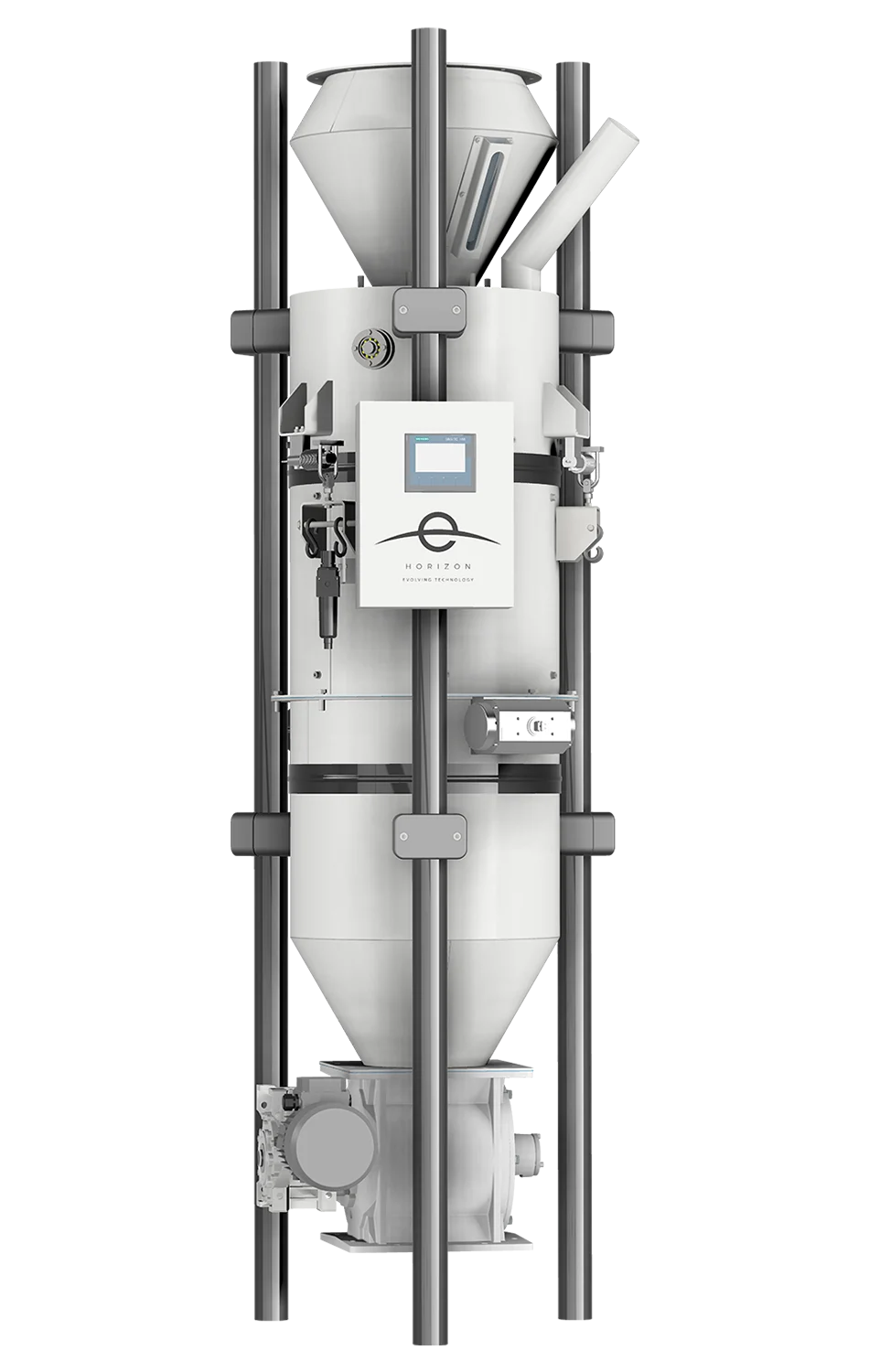

ScaleOne

Batch Scale

The ScaleOne (SO) is a high-precision batch scale engineered for rigorous flow regulation, control, and totalization of both granular and powdery materials. It features an innovative suction-managed feeding unit and a weighing container stabilized by a triple load cell system for maximum accuracy.

  • Control: Utilizes advanced weighing technology for precise flow management; includes dedicated access doors on both the feeding and weighing units for streamlined maintenance and cleaning.
  • Connectivity: Industry 4.0 ready, supporting ETHERNET, MODBUS TCP, and PROFINET for seamless local or remote interfacing via digital and analog controls.
  • Performance & Build: Supports flow rates from 1 to 42 m³/h; available in food-grade epoxy-coated carbon steel or AISI 304 stainless steel with an IP65-rated control panel.
  • Compliance: Certified for use in ATEX 22 environments.
Models Height (mm) Height (in) Capacity (metric) Capacity (imperial)
SO30 1665 mm 65.6 in 11 m^3 / hr xx cuft / hr
SO50 2060 mm 81.1 in 16 m^3 / hr xx cuft / hr
SO100 2875 mm 113.2 in 24 m^3 / hr xx cuft / hr
SO200 2920 mm 115 in 42 m^3 / hr xx cuft / hr

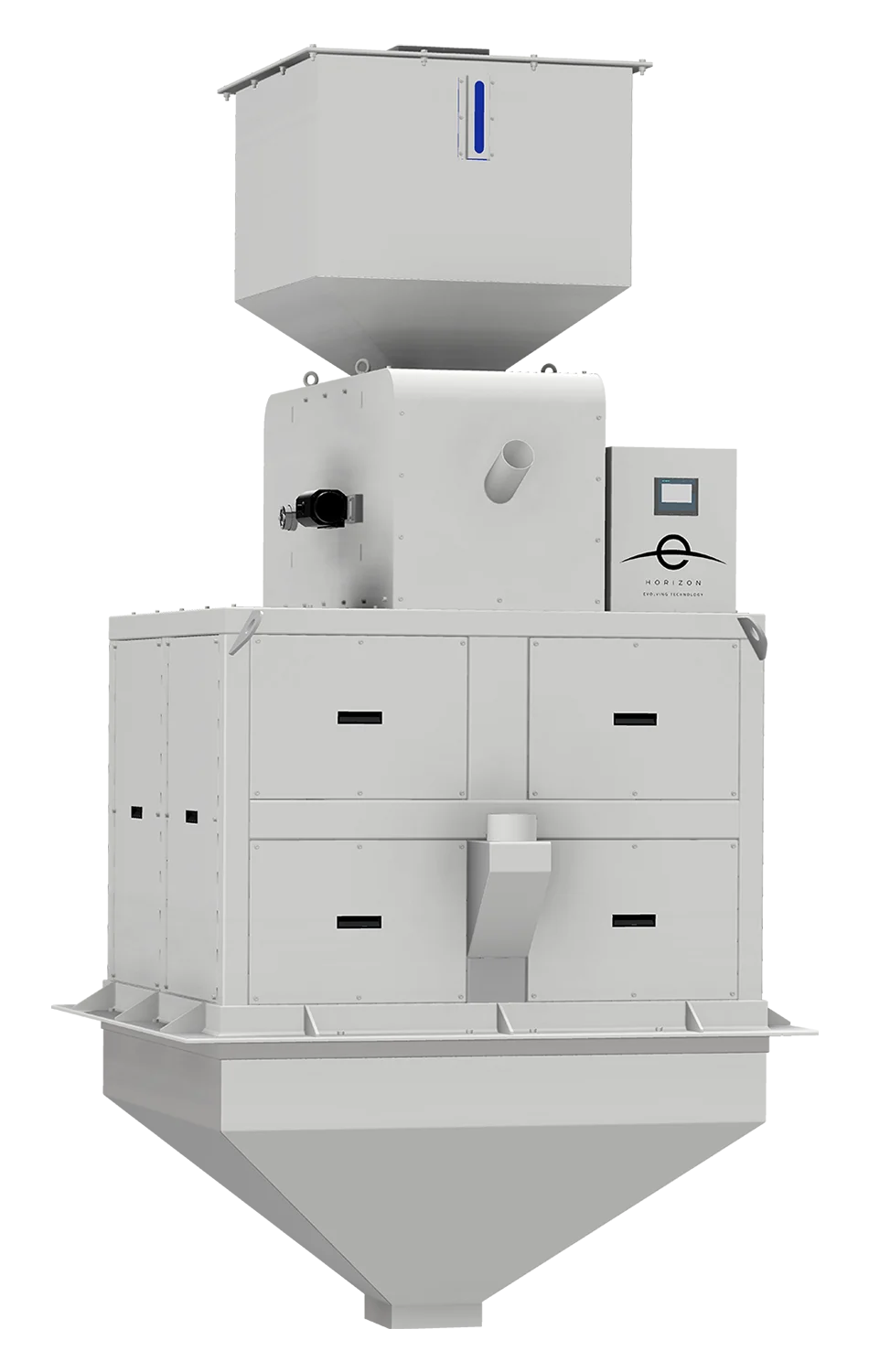

WeightOne

Twin Hopper Scale

The WeightOne (WO) is a high-capacity twin hopper scale designed for precision process control of granular and powdery products. Its synchronous double-basket weighing system enables high throughput within a compact footprint, utilizing four weighing modules per container to maximize stability.

  • Control: Synchronized double-basket weighing optimizes accuracy at high speeds; features fully removable panels for comprehensive cleaning and simplified maintenance.
  • Connectivity: Industry 4.0 ready, supporting ETHERNET, MODBUS TCP, and PROFINET for seamless local or remote interfacing via digital and analog controls.
  • Performance & Build: Supports flow rates from 1 to 250 m³/h; available in food-grade epoxy-coated carbon steel or AISI 304 stainless steel with an IP65-rated control panel.
  • Compliance: Certified for use in ATEX 22 environments.

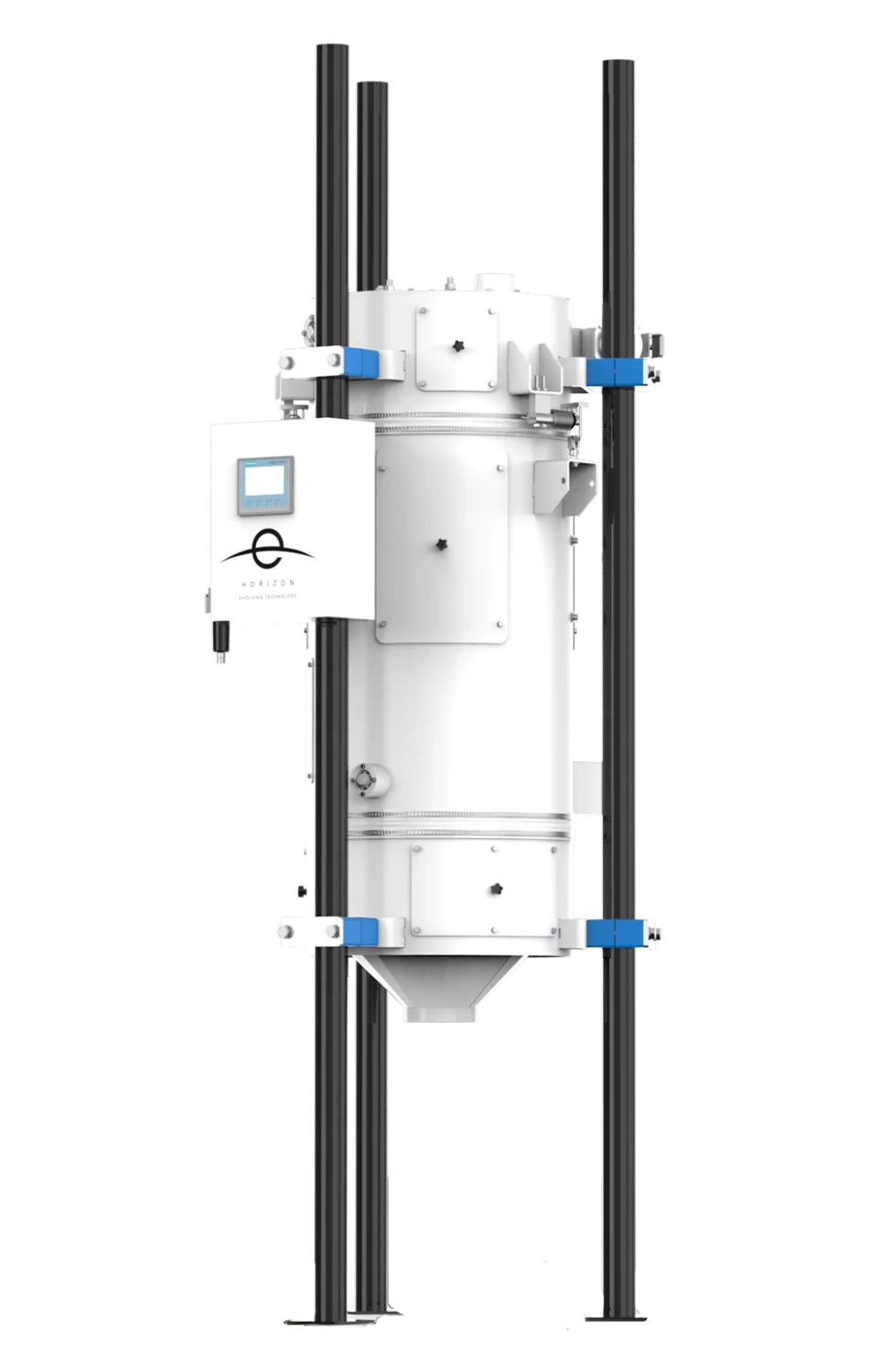

LiwOne

Continuous Flow Scale

The LiwOne (LO) is a continuous-flow scale engineered for precise dosing and totalization in production processes where space is limited. It utilizes an innovative suction-managed feeder unit for stabilized weighing.

  • Control: Employs a triple load cell weighing system and a high-precision servomotor dosing gate; all modules include dedicated access doors for rapid maintenance and cleaning.
  • Connectivity: Industry 4.0 ready, supporting ETHERNET, MODBUS TCP, and PROFINET for seamless local or remote interfacing via digital and analog controls.
  • Performance & Build: Supports flow rates from 1 to 25 t/h; available in food-grade epoxy-coated carbon steel or AISI 304 stainless steel with an IP65-rated control panel.
  • Compliance: Certified for use in ATEX 22 environments.

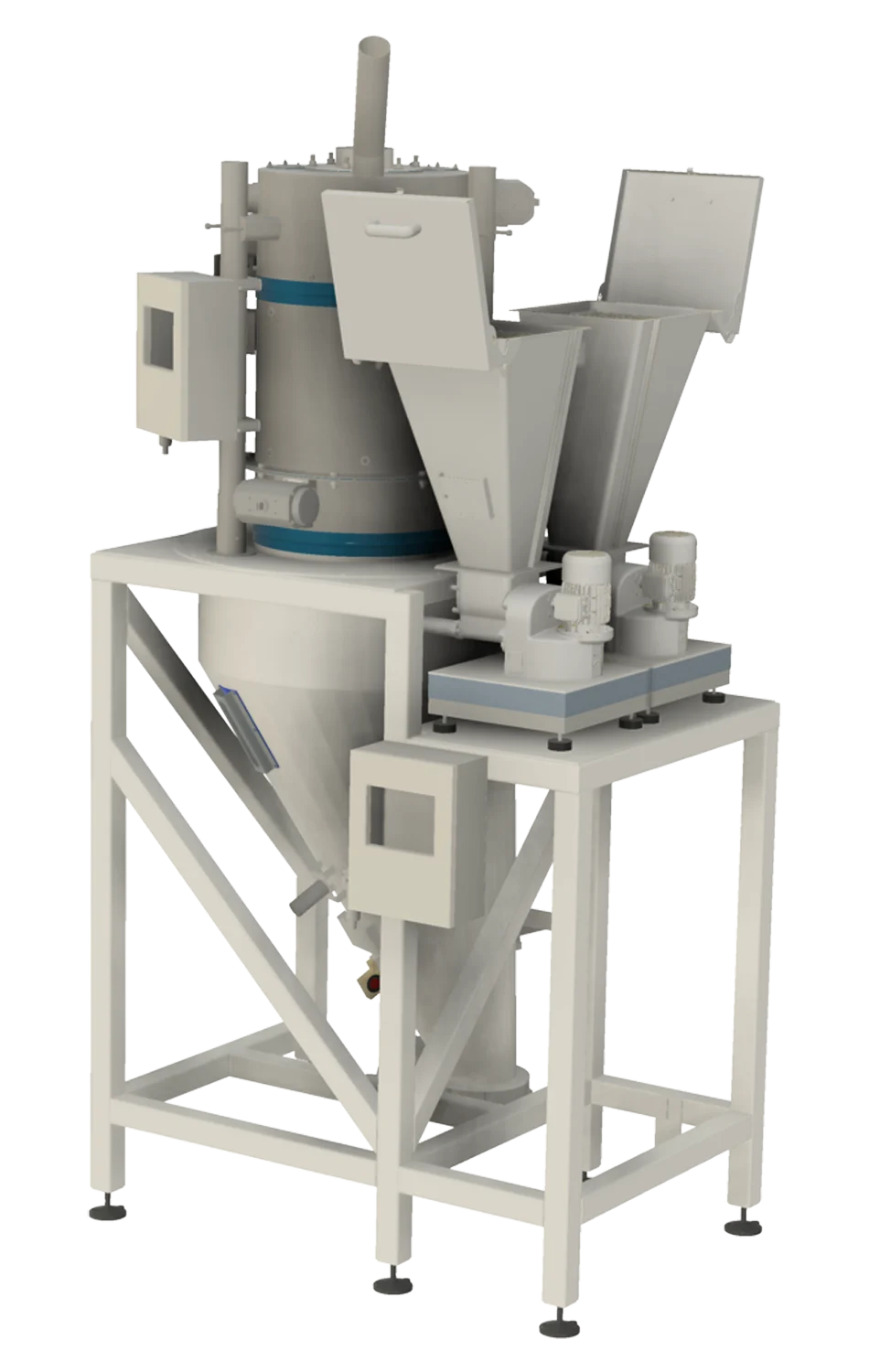

Micro-Ingredient Dispenser

Ponderal Flow Balancer

The Micro-Ingredient Dispenser (MD) is a high-efficiency feeder made for the precise continuous or batch volumetric dosing of powdered and granular components.

  • Design & Build: Constructed with a robust all-stainless steel body featuring a horizontally mounted rotating mixing tool and a precision feeding screw for optimal material conditioning.
  • Operational Versatility: Suitable for diverse industrial sectors; easily integrated into both in-line additive processes and standard batch processing environments.
  • Optional Integration: Fully customizable with loading hoppers, flow-assisting vibrators, and integrated weighing systems for high-accuracy loss-in-weight dosing.
  • Compliance: Available with ATEX certification for safe operation in explosive atmospheres.
View Our Catalog

Blower Engineering Products

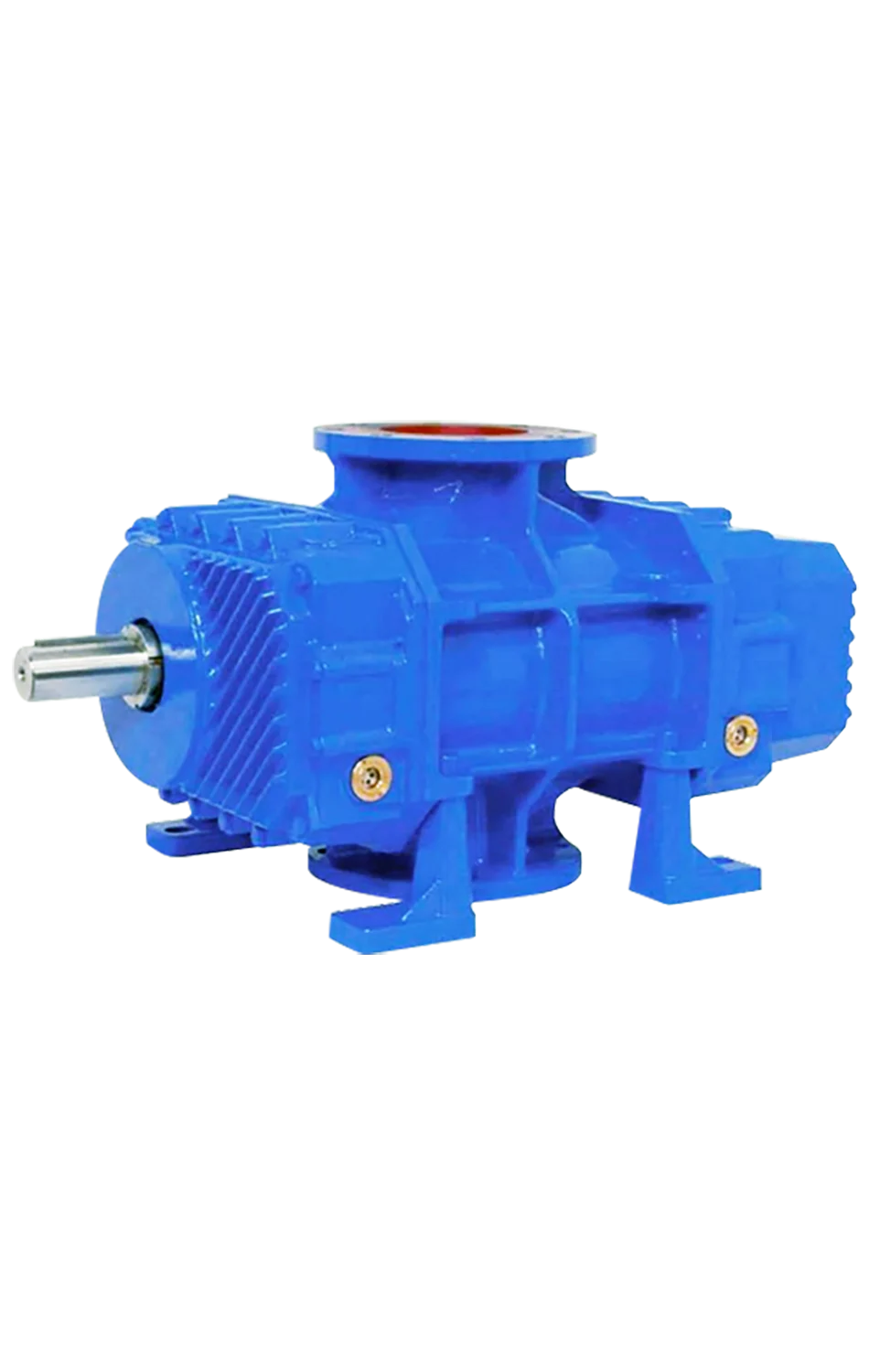

Tri-Lobe Blowers

  • Precision Engineering: Features Tri-Lobe® involute rotors for maximum efficiency and high-rigidity shafts to minimize vibration and mechanical deflection.
  • Extended Durability: Heavy-duty, ribbed cast iron housing enhances heat dissipation and noise reduction, while precision-ground helical timing gears ensure smooth, synchronized operation.
  • Long-Life Bearings: Equipped with premium spherical/cylindrical roller and ball bearing combinations designed for a 100,000+ hour service life.
  • Advanced Sealing: Includes non-wearing slinger-type oil seals and piston ring air seals for dependable, leak-free performance unaffected by high temperatures.
  • Oil-Free Delivery: Splash oil lubrication ensures maintenance simplicity while delivering 100% oil-free air or gas.
  • Flexible Installation: Removable mounting feet allow for easy horizontal or vertical airflow configuration; units can be direct-coupled or V-belt driven

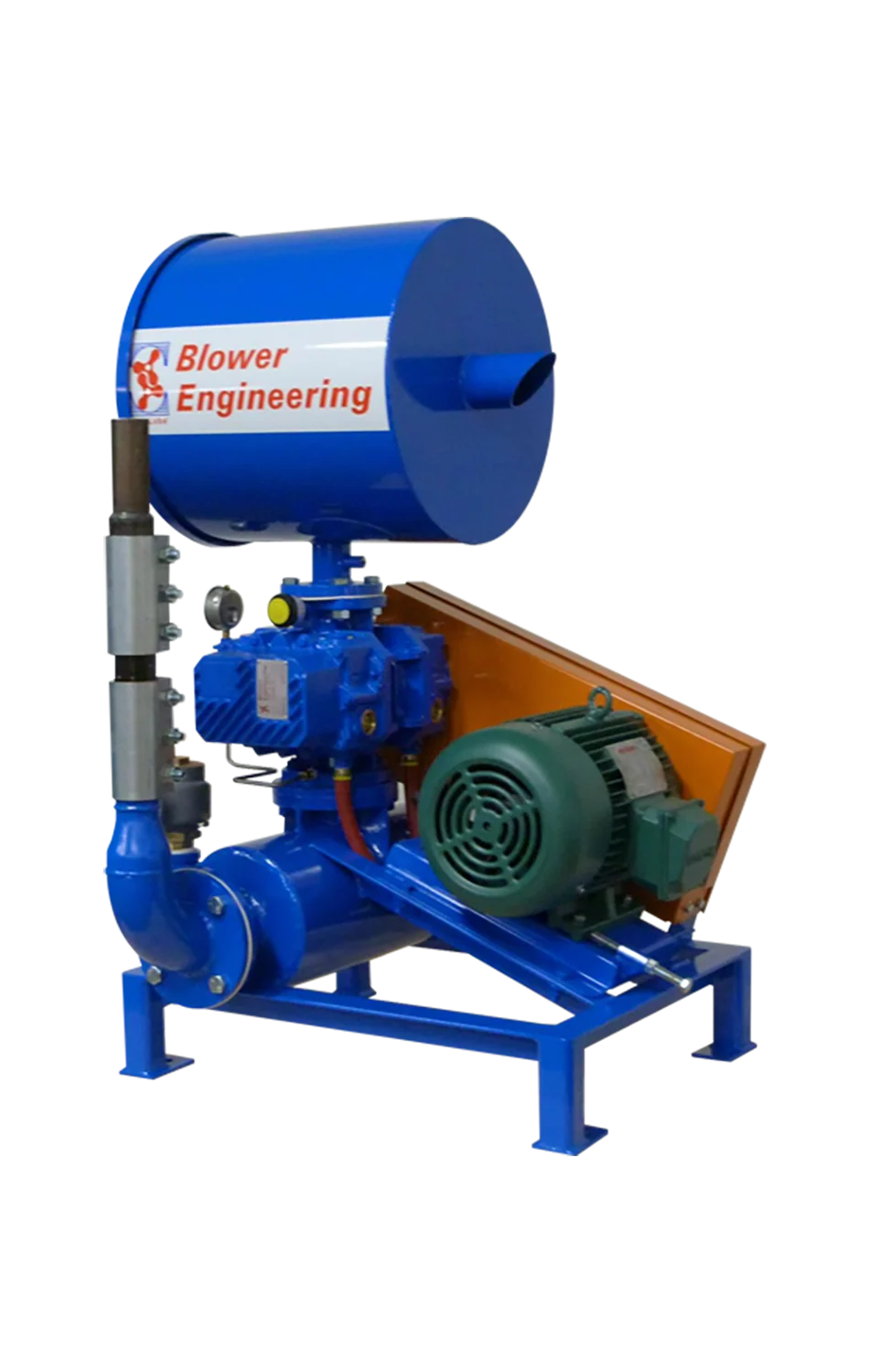

Blower Packages

  • Turnkey Efficiency: A fully integrated system featuring the blower, motor, and drive assembly for immediate “plug-and-play” installation
  • Customizable Power: Engineered to your specific requirements with adjustable motor types and horsepower ratings to match any demand
  • Precision Drive Options: Available in standard V-belt configurations with adjustable tensioning or High Torque Drive (HTD) for maximum power transmission and efficiency
  • Structural Integrity: Mounted on a heavy-duty structural steel base designed with a compact footprint and integrated vibration isolation to ensure stable operation
  • Operational Safety: Comes standard with belt guards and easy-access maintenance points for safe, streamlined service

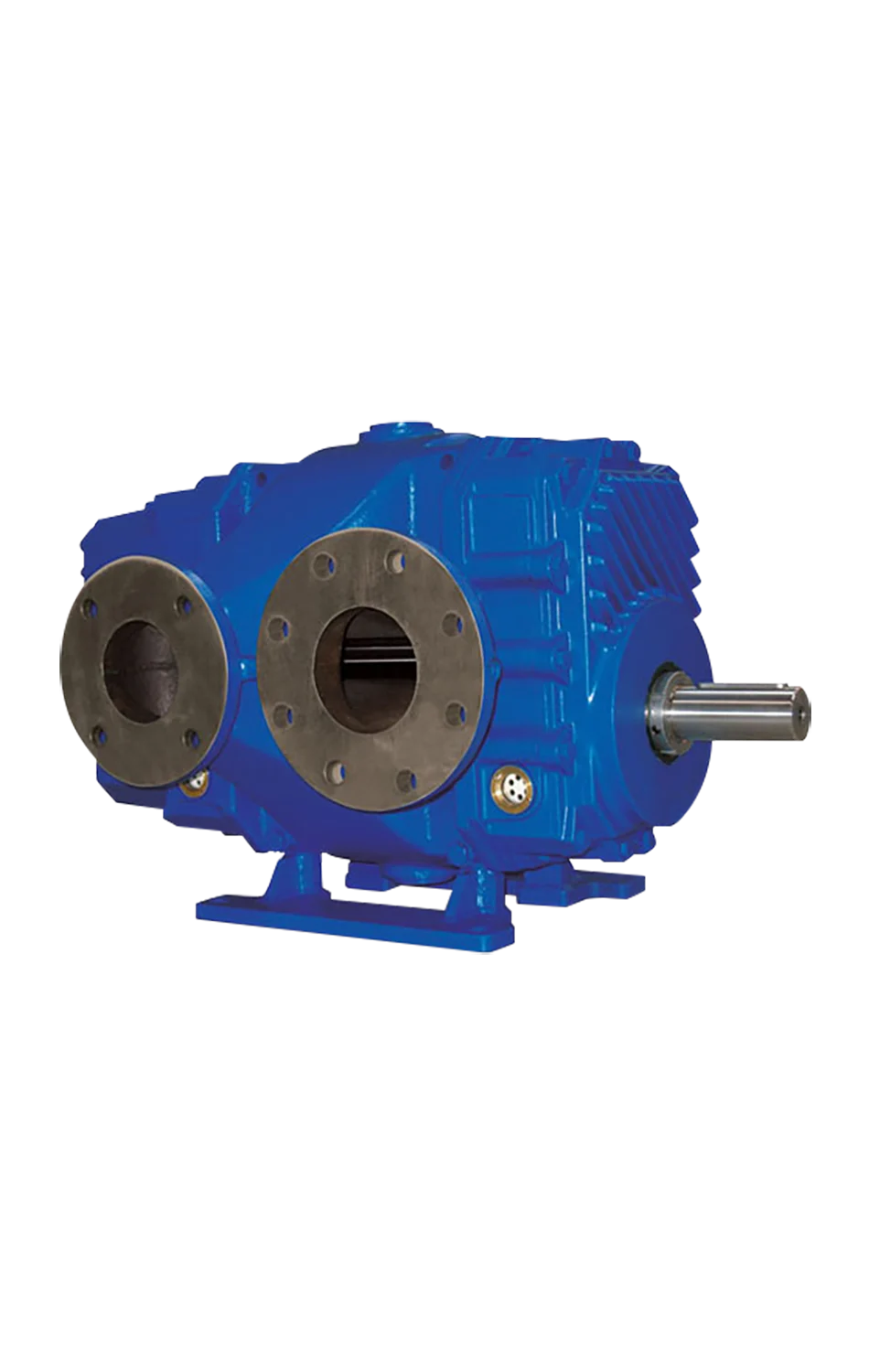

High-Vacuum Air Injector Exhausters

  • Powerful Performance: Delivers capacities from 55 to 3,305 ICFM with absolute pressure ratios ranging from 2.15 to 6.1 (at sea level).
  • Continuous Duty: Built for rigorous, continuous service at up to 25 in. Hg vacuum: versatile design also supports pressure service up to 15 PSIG with proper valving.
  • Reliable Synchronization: Precision helical gears maintain perfect rotor timing under all load conditions, ensuring a long, stable service life.
  • Heavy-Duty Build: Features premium anti-friction bearings and full oil lubrication—eliminating the need for grease—to minimize friction and extend component longevity.
  • Flexible Drive & Connectivity: Compatible with electric motor or engine drives via direct coupling or V-belt. Equipped with ANSI 125# flanged connections for secure, thread-free porting
